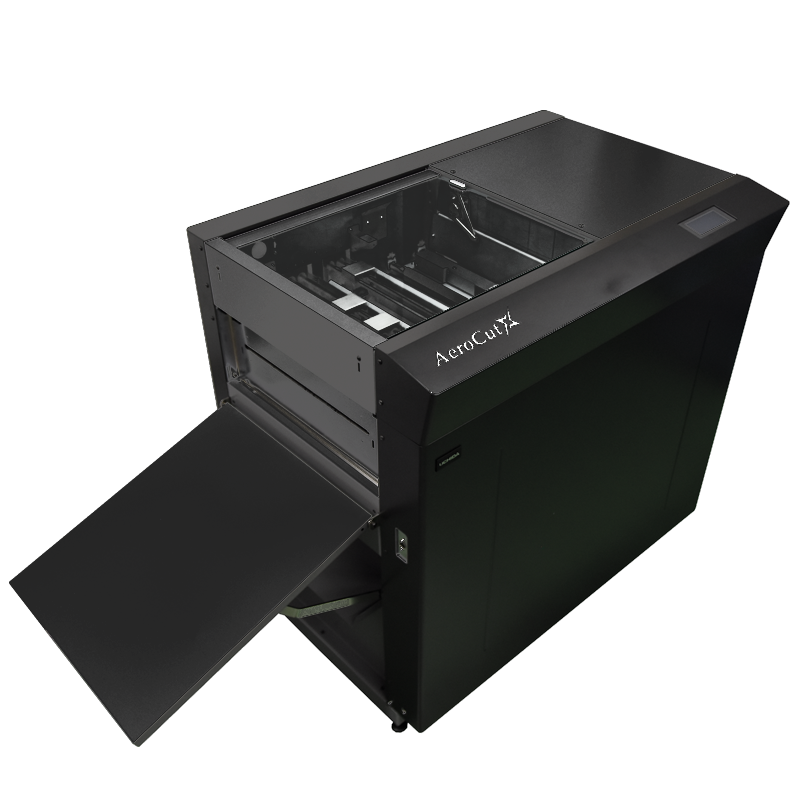

AeroCut

Functions

Slit, cross cut, crease,

*perforate, *score, *slit-score (Optional)

Feedable paper size

210(W)x210(L) - 370(W)x750(L) mm*Up to 1,600mm with support.

Minimum finished size

55(W)x45(L) mm

Paper weight

120 - *400 gsm

*Depending on paper quality

Operation

7" touch screen

Job memories

266 preset jobs

100 + 50 customized job memories

Feeding mechanism

Upper belt tri-suction feed (Patented)

Side blow

Skew adjustment

Side aligner

Ultra sonic double feed detection

Cut mark registration

Feed tray stacking capacity 100mm

Speed

(Sheets/min. )

8.6 x 21up business cards (SRA3)

13.3 x 8up A6 post cards (SRA3)

14.9 x 4up A5 greeting cards (SRA3)

20 x A3 leaflet + center crease (SRA3)

Dimensions

1,062(W)x763(D)x1,076(H) mm

Footprint

1,903(W)x763(D) mm

NET Weight

270kg

Power supply

Power consumption

100-120V or 200-240VAC, 50/60Hz

single phase, 400W
